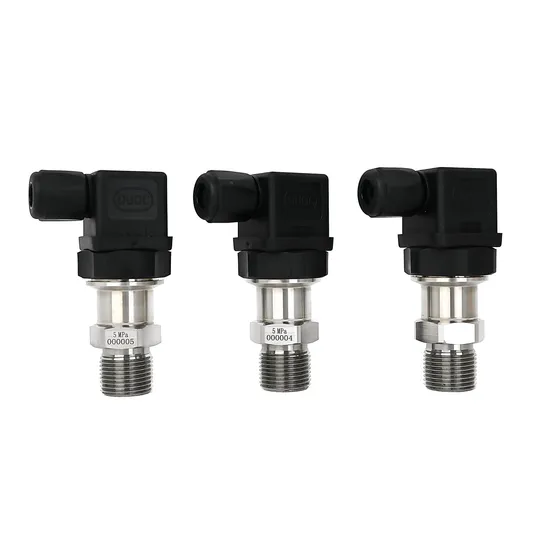

Customized China IP67 Chntek Transmitter Transducer Switch Differential Smart Rosemount Pressure Sensor

• Overview
• Product Description
• Product Paramenters
• Company Profile
• Why Choose CHNTEK
• Our Advantages
• FAQ

Overview

Basic Info.

Model NO.	QTQ300
Measuring Medium	Liquid
Accuracy Grade	0.5G
Pressure range	40MPa
IP Rating	IP67
Certification	ISO
Customized	Customized
Burst Pressure	400MPa
Single Gross Weight	0.065kg
out	4-20mA
Power Supply	8-32VDC
Customized Support	OEM, ODM
Overload	300%F.S
Long-Term Stabilty	0.2%F.S/Year
Warranty	1 Years
Work Temperature	-40~+105c or by Customized
Trademark	chntek
Origin	China

Product Description

Product Description

Product Paramenters

Parameter	QTQ 300
Measuring range(MPa)	1-10	16-40	60-100MPa	100-250MPa
Burst pressure	300%	300%	200%	100%
Overload pressure	4000%	1000% and ≤400MPa	≤400 MPa
Accuracy	±0.2%F.S/±0.5%F.S/±1%F.S
Long-term stability	±0.2%F.S/year
Output	4-20mA, 0.5-4.5V, 0.5-4.5V(ratiometric), 0-10V,0-5V
Power Supply	8-32VDC
Zero point temperature drift	±0.1%F.S/10ºC
Full range temperature drift	±0.3%F.S/10ºC
Response time	≤1ms
Durability	10^8pressure circles
lnsulation resistance	≥1000MQ/500VCD
Sensitive component material	17-4PH
lP rating	IP67
Medium temperature range	-40~+80ºC(0.25%F.S), -40~+105ºC(0.5%F.S,1%F.S)
Ambient temperature range	-40~+105ºC
Storage temperature range	-40~+105ºC
Random vibration	20g,GB/T2423.56-2006
Sinusoidal vibration	14.1g,GB/T2423.10-2008
Shock	50g,11ms,GB/T2423.5-1995
EMC-electromagnetic field radiation immunity	GB/T 17626.3-2016
EMC-electrostatic discharge immunity	GB/T 17626.2-2018
Dimensions	Outer diameterΦ 19.6mm, height 47.6±1mm
Pressure port	G2=G1/4-19 M3=M12*1.5 G1=G1/8 G5=G1/4-19A M6=M20*1.5 M1=M8*1.25 G4=G1/2 M4=M14*1.5 N2=NPT1/4 G3=G3/8
Electrical Connection	01=M12X1 02=Direct cable outlet 03=Packard connector 04=Hirschmann connector 05=AMP connector 07=Deutsch DT04-4P 08=Deutsch DT04-3P 12=SUMITOMO 6189-0131 13=SUMITOMO 6189-6907

Company Profile

Chntek is a high-tech enterprise integrating R&D and manufacturing. Since 2006, CHNTEK has been dedicated to the design, development, manufacturing and one-stop solution service for pressure sensors and their chips. The main products include various sputtered thin film pressure sensitive chips, pressure sensors, pressure transmitters, liquid level sensors, wireless IoT system products and so on. The products are widely used in construction machinery, oil field, coal mine, industrial control, urban pipeline network monitoring and other industries. CHNTEK: Your One-Stop Solution Provider for Cutting-Edge Sensor Technology Who is CHNTEK?

Why Choose CHNTEK

Innovation With 10+ years of research and development experience, the R&D team continues to grow and has obtained more than 40 national patents. Major The company has a plant area of 60,000+ m2 with pre-processing plant, class 100 clean chip plant and fully automated packaging plant and has passed SGS certification. The qualified rate of sensor processing is over 96%. The annual production capacity exceeds 20 million units. Product The product range is rich, and it is tailored based on the different needs of customers. The product has stable performance and high-cost performance. The main products have passed CE, FCC, RoHS, ATEX, IECEX and other certifications. Team Our team is composed of excellent automation engineers, electronic engineers, mechanical engineers, computer experts and sales engineers in various fields, and 90% of them have bachelor's degrees or above.

Our Advantages

At CHNTEK, we are dedicated to becoming a global brand in the sensor field, mastering the core technology, as well as having the whole industry chain production line. We believe in creating value for our customers as the foundation of our enterprise survival, and we are committed to honesty, satisfaction, and excellence in all that we do. Choose CHNTEK for cutting-edge sensor technology, exceptional service, and unmatched expertise.

FAQ

Q: Are your manufacturer? A: Yes,We are professional sensor manufacturer over 15 years! Our technical team has more than 20 engineers. Q: Can you accept OEM service? A: Yes, we can put your company information and logo on our sensors. Q: Can I be your distributor? A: Yes, we are looking for distributors in oversea market. Q: What is your lead time? A: Normally 5-7days. For quantity above 1000pcs, need extra 3-5 working days. Purchase guide To recommend you the most suitable sensor, please tell us below information. 1. Working temperature: -40~+105 °C? 2. Test range? 3. Output: 4-20mA, RS485 or others? 4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5? 5. Electrical connection: DIN43650, Packard, Direct lead? 6. Order quantity:?
